TI 4 Level Micro Indicator Label

Product Specification

Scale: °C

Range: 40ºC to 224ºC on 9 labels

Type: Adhesive backed labels

Reaction Time: Max 4 sec.

Accuracy:
up to 99ºC +/- 1ºC
100ºC to 154ºC +/- 1.5ºC
160ºC to 280ºC +/-(1% + 1ºC)

Accuracy & Conformity: Click Here

Education: How do they work

Resources

Description

Sold in packs of 10

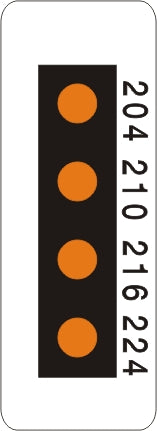

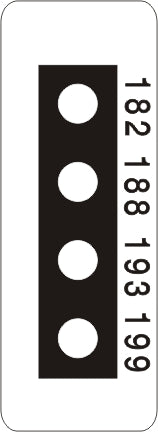

TI 4 Level Micro Indicator Labels are available over a range of 40°C to 224°C (104°F to 435°F).

If an indicator has been exposed to a temperature in excess of it’s rating, it provides a tamper proof display of temperature achievement.

Widely used in the pharmaceutical, electronics, aerospace, automotive and food production industries

  • monitoring transportation and distribution
  • providing evidence of a thermal disinfection temperature achievement
  • confirming soldering temperatures
  • monitoring engine component temperatures for warranty claims
  • confirming temperature integrity in machine maintenance
  • warning users that environmental conditions exceed temperature limits

If placing the indicators in an environment where they can be exposed to oil or aggressive conditions we recommend the labels are sealed in place on a clean dry surface with one or more layers of clear epoxy.

When using these indicators, ensure they are kept only in refrigeration temperatures and NOT deep freeze situations. The labels must be applied to a dry, clean surface to ensure proper adhesion.

Please also note that touching the indicator may activate the indicator in summer months, especially if ambient temperature is at or around 29ºC.

Need a bigger quantity of 1000+ labels or your own logo on the labels? We've made a wide range of bespoke designs for for customers who need something different. Email us with some details of your requirement and we'll quote you a price within 48 hours.

Testing & Verification Procedure: Measuring Colour Change Temperatures of Temperature Indicating Labels
