Overview

Adhesive backed temperature sensitive label that reacts to increasing temperature with permanent colour change. Available in 4 options covering 40ºC to 254ºC.

This label combines the biggest surface area with the largest range of temperatures for a standard product. It is a valuable means of recording maximum surface temperatures in locations where the use of thermometers or electronic temperature datalogger devices may not be practical. Versatile, accurate and 100% reliable.

Resources

Safety Data Sheet
Surface Temperature Monitoring System
Product Information Sheet

Specification

Size: 51mm x 18 mm (2" x 0.7")
Scale: °C & °F
Range: 40°C to 249°C on 4 labels
Reaction Time: Max 4 sec.
Colour change: one way permanent when exposed to increasing temperature
Type: Vertical Adhesive backed labels
Accuracy:

up to 99°C +/- 1°C
100°C to 154°C +/- 1.5°C
160°C to 280°C +/-(1% + 1°C)

Accuracy & Conformity: Click Here
Education: How do they work?

Details

Sold in packs of 10

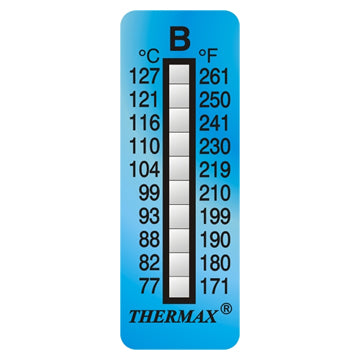

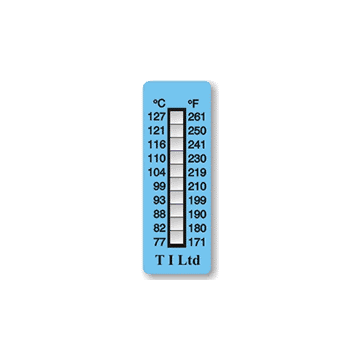

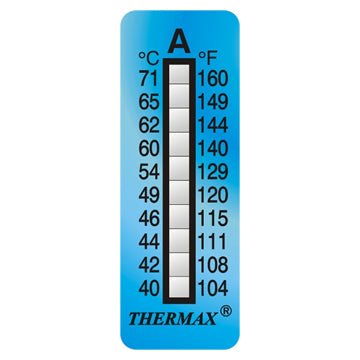

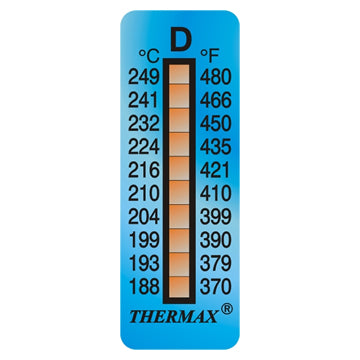

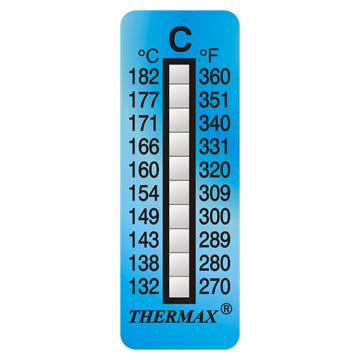

TI 10 Level Strip Indicator Labels are available over a range of 40°C to 249°C (104°F to 480°F).

If an indicator has been exposed to a temperature in excess of its rating, it provides a tamper proof display of temperature achievement.

Widely used in the pharmaceutical, electronics, aerospace, automotive and food production industries

monitoring transportation and distribution
providing evidence of a thermal disinfection temperature achievement
confirming soldering temperatures
monitoring engine component temperatures for warranty claims
confirming temperature integrity in machine maintenance
warning users that environmental conditions exceed temperature limits

If placing the indicators in an environment where they can be exposed to oil or aggressive conditions we recommend the labels are sealed in place on a clean dry surface with one or more layers of clear epoxy.

When using these indicators, ensure they are kept only in refrigeration temperatures and NOT deep freeze situations. The labels must be applied to a dry, clean surface to ensure proper adhesion.

Please also note that touching the indicator may activate the indicator in summer months, especially if ambient temperature is at or around 29°C.

Need a bigger quantity of 1000+ labels or your own logo on the labels' We've made a wide range of bespoke designs for for customers who need something different. Email us with some details of your requirement and we'll quote you a price within 48 hours.

10 Level Temperature Indicator Labels

10 Level Temperature Indicator Labels 40°C to 249°C
